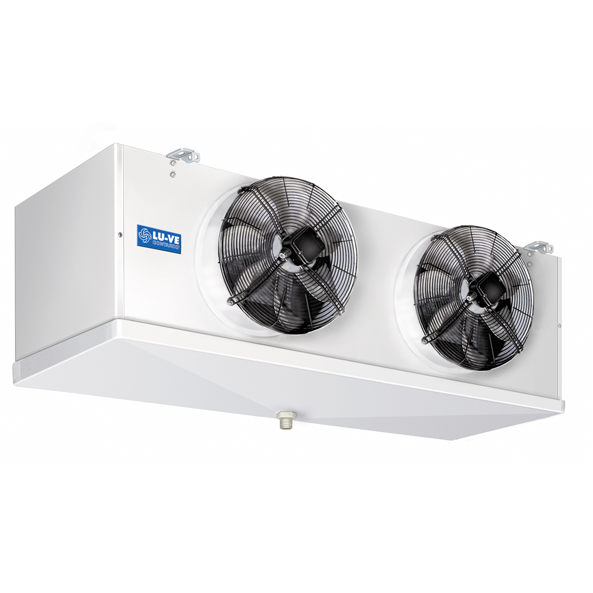

LU-VE F45HC evaporators

F45HC

Model line

1208

Model

Electric defrost

Fin spacingl

Code	Type	Capacity WDT 10°C	Air flow (m³)	Fan´s input (W)	Electric defrost input (W)
*Fin spacing 4,5 mm*
7150551	F45HC1100N4	12,5	5300	520/1	3,39
7150552	F45HC1102N4	14,3	4900	520/1	5,08
7150553	F45HC1106N4	24,9	10600	1040/2	6,27
7150554	F45HC1108N4	28,6	9800	1040/2	9,40
7150555	F45HC1112N4	37,5	15900	1560/3	9,15
7150556	F45HC1114N4	42,2	14700	1560/3	13,72
7150557	F45HC1118N4	49,9	21200	2080/4	12,03
7150558	F45HC1120N4	57,6	19500	2080/4	18,04
*Fin spacing 6,0 mm*
7150561	F45HC1200N6	11,3	5600	520/1	3,39
7150562	F45HC1202N6	13,4	5200	520/1	5,08
7150563	F45HC1206N6	22,7	11200	1040/2	6,27
7150564	F45HC1208N6	26,9	10400	1040/2	9,40
7150565	F45HC1212N6	34,0	16800	1560/3	9,15
7150566	F45HC1214N6	39,8	15700	1560/3	13,72
7150567	F45HC1218N6	45,9	22400	2080/4	12,03
7150568	F45HC1220N6	54,0	20900	2080/4	18,04
*Fin spacing 7,0 mm*
7150571	F45HC1300N7	9,7	5900	520/1	3,39
7150572	F45HC1302N7	11,9	5500	520/1	5,08
7150573	F45HC1306N7	19,4	11800	1040/2	6,27
7150574	F45HC1308N7	23,8	11100	1040/2	9,40
7150575	F45HC1312N7	29,6	17700	1560/3	9,15
7150576	F45HC1314N7	35,2	16600	1560/3	13,72
7150577	F45HC1318N7	39,5	23500	2080/4	12,03
7150578	F45HC1320N7	47,7	22200	2080/4	18,04
Fim spacing 10,0 mm
7150581	F45HC1400N10	7,8	6100	520/1	3,39
7150582	F45HC1402N10	9,7	5800	520/1	5,08
7150583	F45HC1406N10	15,9	12300	1040/2	6,27
7150584	F45HC1408N10	19,5	11600	1040/2	9,40
7150585	F45HC1412N10	23,9	18400	1560/3	9,15
7150586	F45HC1414N10	28,9	17500	1560/3	13,72
7150587	F45HC1418N10	31,8	24500	2080/4	12,03
7150588	F45HC1420N10	39,0	23300	2080/4	18,04
